Dash Meter Buckets and Clusters
A number of guage clusters are under development as the need arises.
As they are developed they will appear here –
If you have a need for one to match the original (or similar) to suit your bike – then send me an email and I can design something up with you and make it available here.

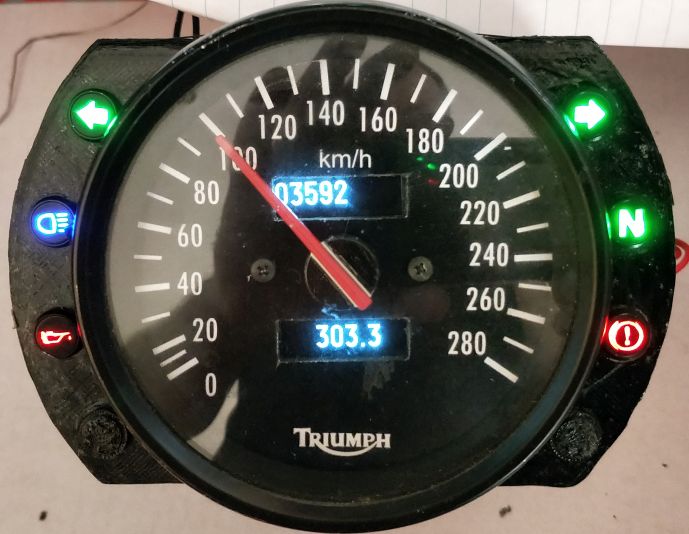

This shows the prototpe setup on the 955i sprint – note with blue OLEDS rather than white – white has better daylight visibility.
This shows a setup for the older Cx 500 in the original cluster to maintain the OEM feel.
Original cluster for a vf750 Magna modified.
The cluster below shows an example I made up to show using the 10mm indicators with a gauge. The normal 6 indicators are provided with the bottom two positions used for the control buttons to allow dis[play changes.
4 alternate display configurations are available in each profile -and these 4 display sets are configurable from any of the supported display options.
there is also an option that could be done with 6 indicators and external buttons.
Below shows four example display setups that could be used with the main gauge configured as a Tacho.
Below shows four example display setups that could be used with the main gauge configured as a Speedo.
